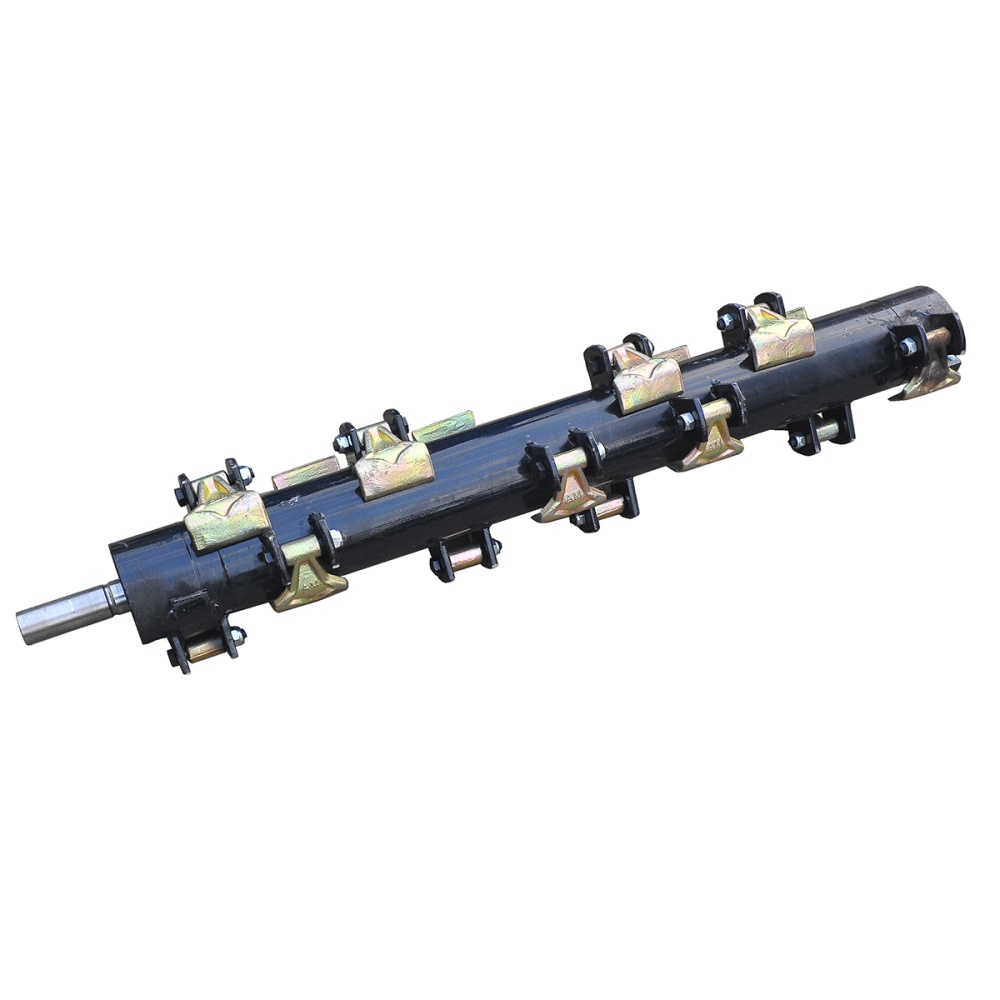

Axle shaft for the EFG105 flail mower, 165 cm wide

Axle shaft for the EFG105 flail mower, 165 cm wide

Axle shaft for the EFG105 flail mower, 165 cm wide. The shaft fits STARK, GEO, KELLFRI AND ORKAN flail mowers.

Technical data:

- Shaft for Y-knives and hammer flails with a clamping hole diameter of 12 mm.
- Length: 1600 mm (total length 1725 mm).
- Shaft diameter: 105 mm.
- Number of knives: 28 pcs, (or 28 sets of Y-type knives, the set consists of two Y-knives, total number of individual knives: 56 pcs).
- Screw hole diameter: 12 mm
- Weight: 50 kg (weight with hammers).
- Shaft wall thickness: 6 mm.
- Diameter of bearing mounting tips: 35 mm.

Main shaft (Blade axis) used in EFG165 mowers.
The shafts are electronically balanced.
The shaft in the drawing is marked in green (the shaft is sold without knives, beaters and bearings).
