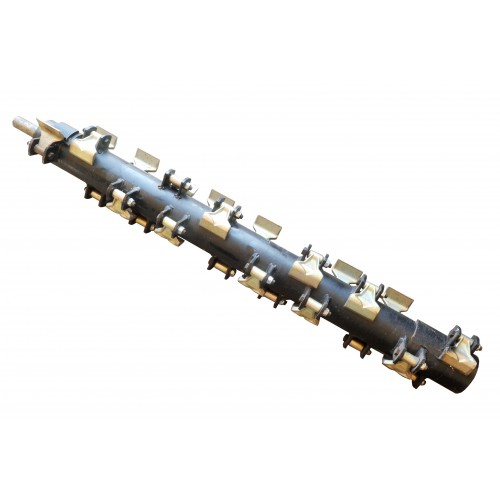

Axle shaft for the EFG135 flail mower, 135 cm wide
Main shaft with a working length of 1300 mm and a diameter of 105 mm for the 4FARMER flail mower of the EFG135 4FARMER series and others.
The flail shaft is a key component in mowers, and its main function is to rotate the attached flails, which perform a cutting movement. Thanks to the high rotational speed of the shaft, the flails are able to effectively chop up vegetation, which allows for an evenly mowed surface. The flails, which are usually made of hardened steel, are characterized by high resistance to wear and damage. Their shape, often resembling the letter "Y" or "T", is optimized for cutting efficiency and minimizing resistance during operation. Thanks to this, mowers with a flail shaft are able to cope with a variety of terrain conditions and types of vegetation.
Axle shaft for the EFG135 flail mower, 135 cm wide. The shaft fits STARK, GEO, KELLFRI AND ORKAN flail mowers.
Technical data:
- Shaft for Y-knives with a 12 mm hole diameter.
- Length: 130 mm (total length 143 mm).
- Shaft diameter: 105 mm.
- Number of knives (hammers): 24 pcs, (24 sets of Y-type knives, the set consists of two Y-knives, total number of individual knives: 44 pcs).
- Screw hole diameter: 12 mm
- Weight: 4 kg (weight with hammers).
- Shaft wall thickness: 6 mm.
