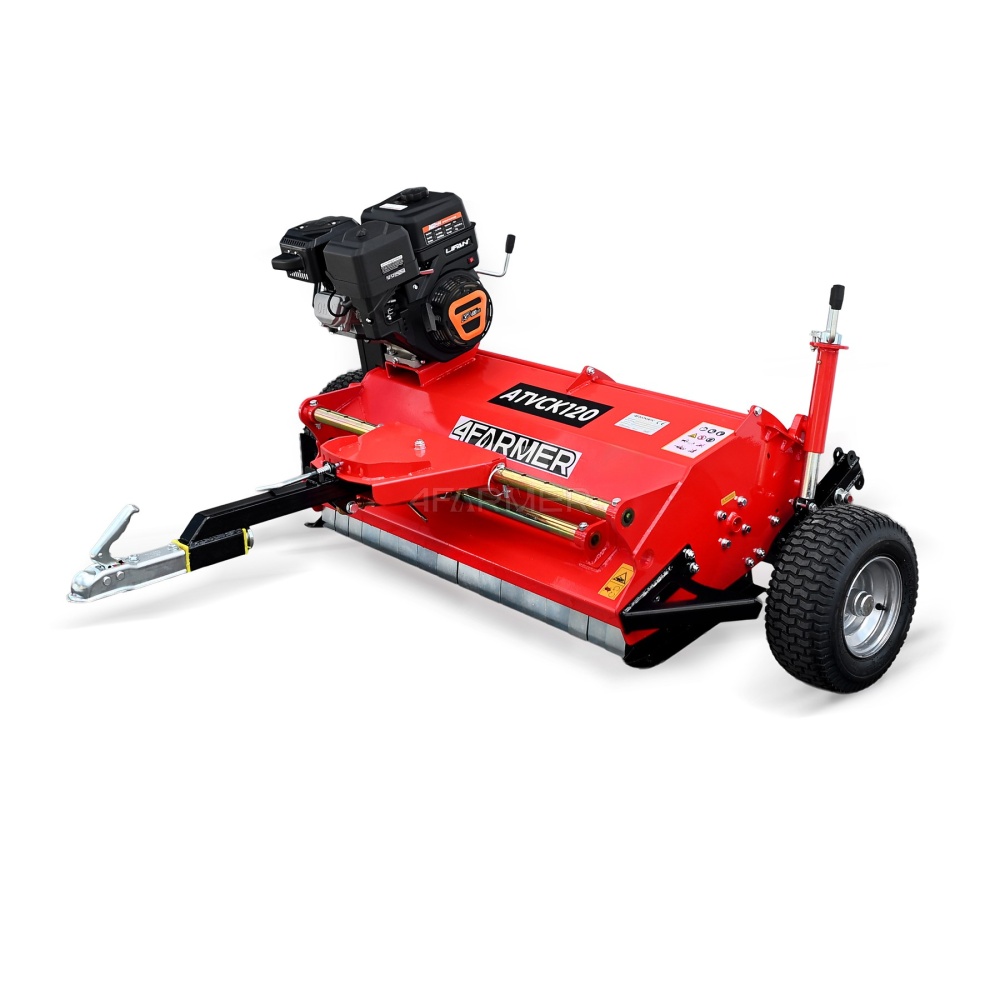

Petrol flail mower ATVM 120 for QUAD / Briggs & Stratton XR2100

Flail mower with combustion engine or what is an ATV mower ?

Mower with its own combustion engine , attached to various vehicles - this is the ATV mower (All-Terrain Vehicle). There is no exact definition of ATV mowers , but it is definitely a lawn mower that, thanks to the fact that it has its own engine, it does not need power transmitted e.g. from a tractor or other machine (PTO shaft). ATV mower does not have own drive, therefore it must be towed, and this is most often the towing hook or ball hitch of the car trailer. Even though the machine has an engine, the ATV mower must be towed by another machine because the mower's combustion engine only drives the cutting shaft or the mowing blades, so it is only responsible for mowing the grass.

Types of ATV mowers :

• ATV flail mower ,
• ATV mower care ,

that differ in the cutting aggregate. In ATV flail mowers these are special ATV hammers , flails placed on the cutting shaft, and in ATV care mowers, a special ATV knife or knives that rotate in the same way as a helicopter propeller.

Manual starter or electric starter?

Whichever version of the flail mower we choose:

• ATV-E - version with electric starter,
• ATV-M - with manual starter (puller),

All ATV mower engines are standard equipped with a manual starter lever. The difference between the mower models ATVM and ATVE is the electric system and battery that is visible on ATV-E mowers, which obviously makes operating this version of the mower very comfortable , just turn the key to start the mower.

What do we use the ATV flail mower for?

• ATV flail mower is used for mowing large areas, often neglected and overgrown,
• with the ATV flail mower, we can mow both the lawn with the appearance of which we really care, as well as a meadow or an abandoned orchard,
• ATV flail mower is also a municipal mower,
• the ATV mower can be attached to many vehicles, to a quad, a motorcycle, a car, a mower-tractor, a farm tractor, a mini tractor and many others,
• ATV flail mower is very convenient to transport, it can be towed behind the machine for short distances, and for long distances it can be covered in a small trailer that it can easily fit into,
• see how the ATVM flail mower with HONDA engine works & gt; click HERE & lt;

Technical data and some parameters ATV:

• engine: Briggs & Stratton XR2100, 4-stroke, OVH, gasoline,
• capacity (cm3): 420,
• number of cylinders (pcs): 1,
• engine power (hp): -,
• shaft length (mm): 88,
• shaft diameter (mm): 25.4,
• torque (N.m / rpm): 28.48 / 2600,
• fuel tank capacity (L): 6.6,
• starter: manual, manual cutter,
• working width (mm): 1200,
• overall width (mm): 1850 mm,
• hitch (type): ball / towing hook ISO 50, / E20, E20,
• number of cutting knives / flails (pcs): 28,
• cutting height adjustment (mm): 20 - 200 mm,
• tire size: 16.5x 6.50-3.
• weight (kg): 235 kg.

Adjusting the mowing height in the ATV fairy mower is performed with an adjustment screw located at the rear of the mower. Road wheels of the mower are mounted on a special frame which, depending on the position (screw adjustment), raises or lowers the wheels, which changes the height of the mower relative to the ground.
