Shaft for flail mower EFGC-K 145 / EFGC-KH 145 4FARMER / 1400 mm

Main shaft with a working length of 1,400 mm and a diameter of 105 mm for 4FARMER flail mowers of the EFGC-K 145 4FARMER, EFGC-KH 145 4FARMER series and others.

The flail shaft is a key component in mowers, and its main function is to rotate the attached flails, which perform a cutting movement. Thanks to the high rotational speed of the shaft, the flails are able to effectively chop up vegetation, which allows for an evenly mowed surface. The flails, which are usually made of hardened steel, are characterized by high resistance to wear and damage. Their shape, often resembling the letter "Y" or "T", is optimized for cutting efficiency and minimizing resistance during operation. Thanks to this, mowers with a flail shaft are able to cope with a variety of terrain conditions and types of vegetation.

Dimensions :

• length: 1400 mm,
• working length: 1400 mm,
• total length 1525 mm,
• shaft diameter: 105 mm,
• mounting diameter (pins): 35 mm (UC207 bearing),
• number of beaters: 28 pcs.
• diameter of holes for screws securing the beaters: 16.50 mm,
• weight: 50 kg,

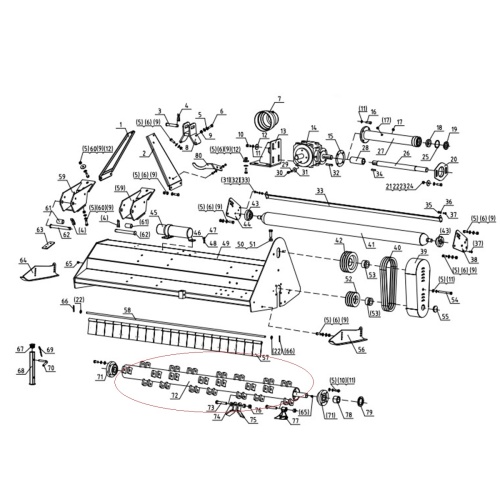

• part numbers (no. 72 marked in the graphic): EFGC145.113.

Lawnmower models :

4FARMER:

• EFGC-K 145 4FARMER,
• EFGC-KH 145 4FARMER.

Warehouse :
M04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

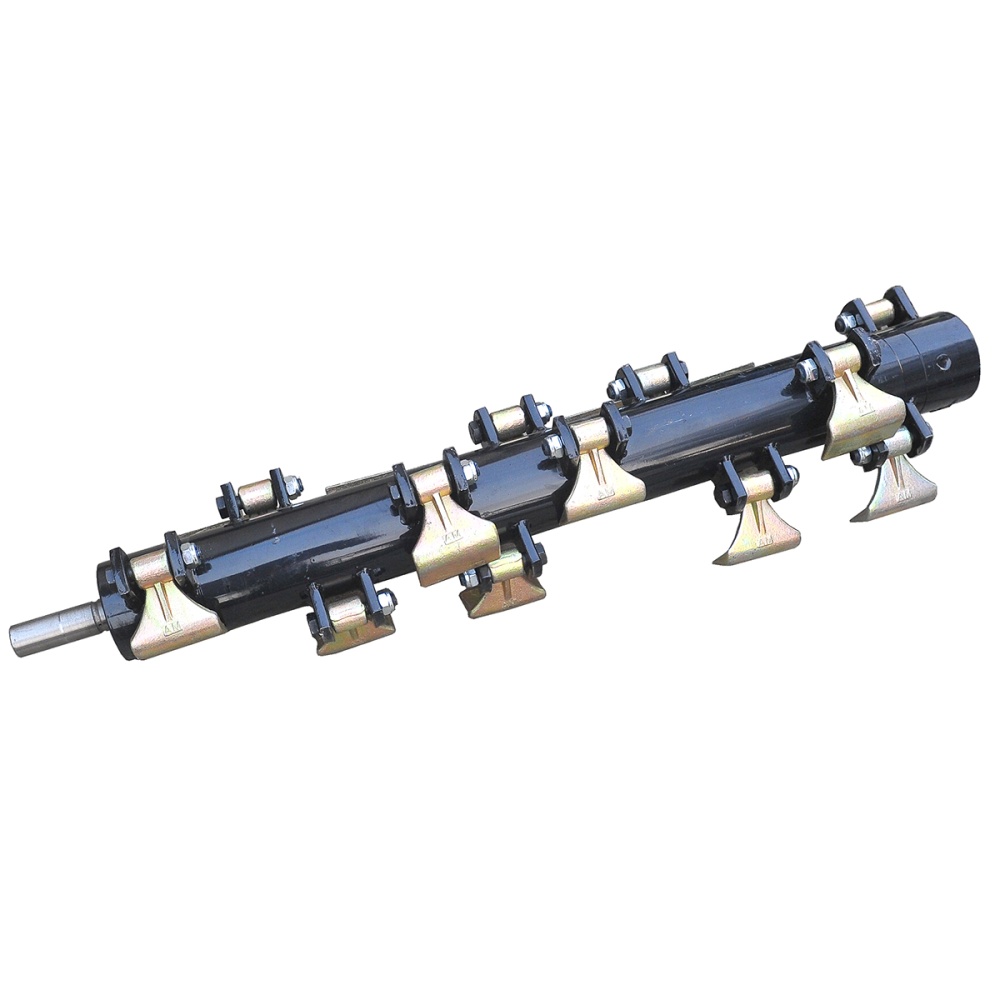

*Illustrative photo. The photo shows the EFGC 105 mower shaft.
