Rotor shaft for flail mower EFG 145 4FARMER / 1400 mm

Main shaft with a working length of 1400 mm and a diameter of 105 mm for the 4FARMER flail mower of the EFG145 4FARMER series and others.

The flail shaft is a key component in mowers, and its main function is to rotate the attached flails, which perform a cutting movement. Thanks to the high rotational speed of the shaft, the flails are able to effectively chop up vegetation, which allows for an evenly mowed surface. The flails, which are usually made of hardened steel, are characterized by high resistance to wear and damage. Their shape, often resembling the letter "Y" or "T", is optimized for cutting efficiency and minimizing resistance during operation. Thanks to this, mowers with a flail shaft are able to cope with a variety of terrain conditions and types of vegetation.

Main shaft with a working length of 1400 mm and a diameter of 105 mm for 4FARMER flail mowers of the EFG145 4FARMER series and others.

The flail shaft is a key component of flail mowers, and its main function is to rotate the mounted flails, which perform the cutting motion. Thanks to the high rotational speed of the shaft, the flails can effectively shred vegetation, which gives an evenly mown surface. The flails, which are usually made of hardened steel, are highly resistant to wear and damage. Their shape, often resembling the letter “Y” or “T”, is optimized for cutting efficiency and for minimizing resistance during work. As a result, mowers with a flail shaft can cope with a variety of terrain conditions and types of vegetation.

Dimensions:

• length: 1400 mm,
• working length: 1400 mm,
• overall length: 1525 mm,
• shaft diameter: 105 mm,
• mounting diameter (pins): 35 mm (UC207 bearing),
• number of flails: 24 pcs.
• diameter of the holes for the flail mounting bolts: 12.50 mm,
• weight: 55 kg,

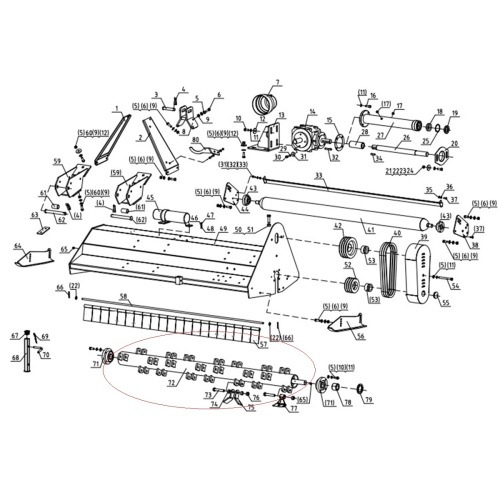

• part numbers (no. 59 marked on the graphic): EFG145.110.

Mower models:

4FARMER:

• EFG145 4FARMER.

Warehouse:
M04

*Photos are illustrative and may differ in details from the delivered product due to production differences over the years

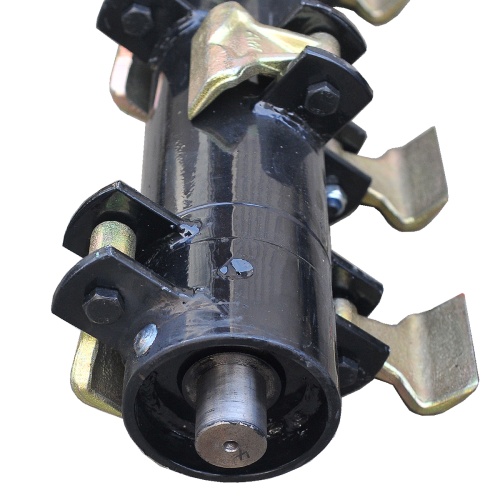

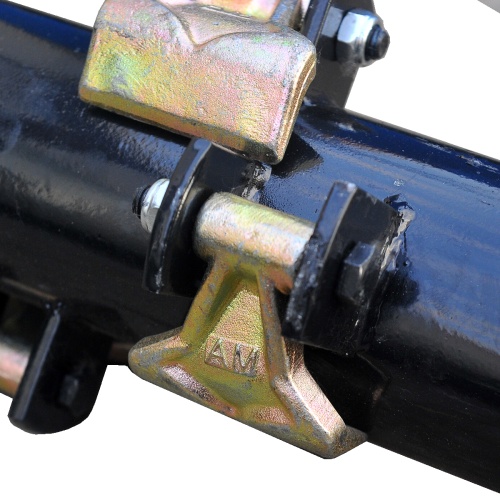

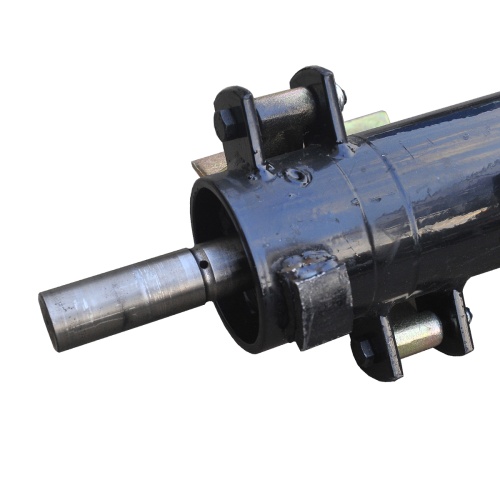

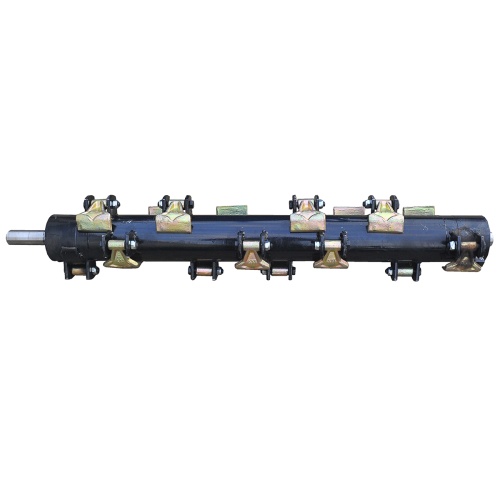

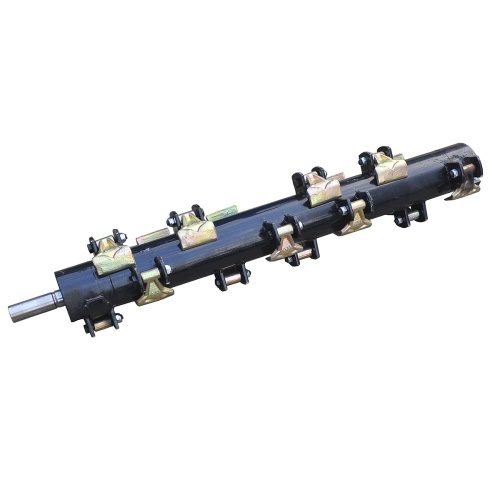

*Illustrative photo. The photo shows the shaft of an EFG105 flail mower.
