Shaft Axle of knives EF125 STARK GEO KELLFRI ORKAN

125cm 29kg śruba M12

125cm 29kg M12 bolt

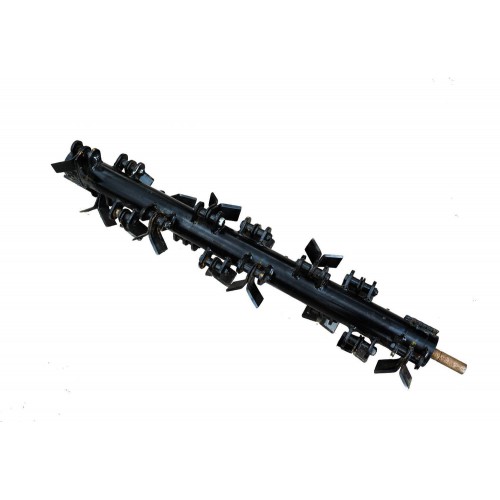

Rotor shaft for the EF125 flail mower, 125 cm wide. The shaft fits STARK, GEO, KELLFRI and ORKAN flail mowers.

Technical data:

- Shaft for Y-type blades with a 12 mm hole diameter.
- Length: 1210 mm ( overall length 1310 mm ).
- Shaft diameter: 76 mm.
- Y-type blades: 21 pcs, ( 21 sets, each set consists of two Y-type blades, total number of single blades: 42 pcs ).
- Bolt hole diameter: 12 mm
- Weight: 29 kg ( weight with blades ).
- Shaft wall thickness: 5 mm.

Main shaft (blade axle) used in EF125.
The shafts are electronically balanced.

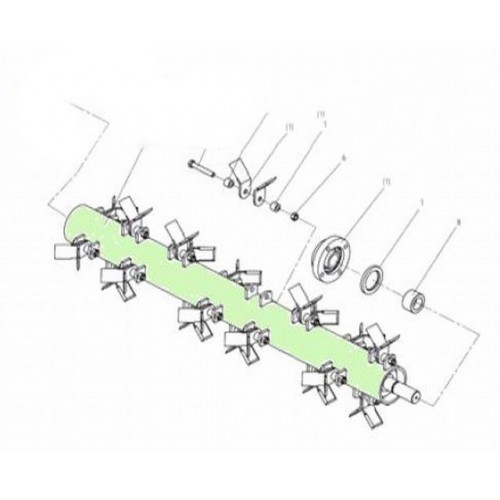

The shaft is marked in green in the drawing (the shaft offered is sold without blades, flail blades and bearings).
