Flail mower EF 135 4FARMER - red

There is an increasing variety of agricultural machinery to help keep green spaces. Now we can choose how we mow pastures, fallow land and green areas, and what to do with the mowed grass. The flail mower has become a very interesting proposition for many customers. Some refer to these mowers as "special purpose" mowers because they can mow tall grass and overgrown areas with ease. The flail mower, as the name suggests, is a lawn mower in which the mowing function is performed by flails placed on the cutting shaft. The cutting shaft rotates around its axis at the right speed and cuts everything above the set height.

The flail mower is a type of rotary mower in which the cutting elements are flails shredding the mowed plants. This mowing system was used in a flail cutter for green fodder (often colloquially called a storm or rotor). The system, in which the beaters are sharpened masses rotating on the cutting shaft, works well for mowing wasteland and roadsides. The machine's revolutions are often higher than 3000 rpm. The drive systems can be mechanical via a PTO shaft or hydraulic via a hydraulic motor.

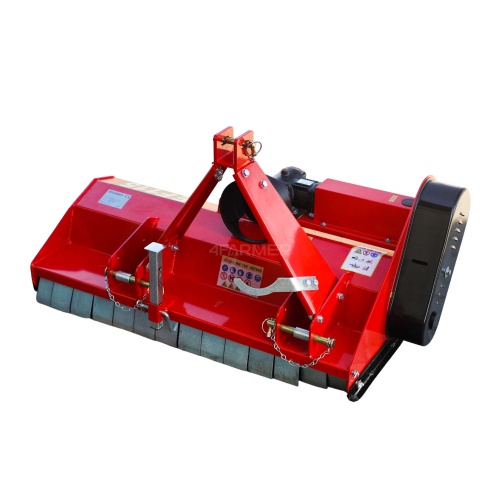

EF 135 flail mower.

The EF mower is a light flail mower designed for mowing and caring for meadows, pastures and wastelands . The compact dimensions allow the machine to be used in hard-to-reach terrain in greenhouses and between rows. The construction of the mower also allows you to work in built-up areas because the mower has a fairly large limitation of stones falling from under the mower. The durable structure and massive structure of the EF mower make it ideal for mowing grassland. roadsides, recreational areas and the elimination of small unevenness or molehills. The way the mower works, the so-called mulching (grinding) does not require collecting the mown material, the ground organic material becomes a natural fertilizer. The simple structure of the mower makes the mower very durable and low-failure. The lightweight EF flail mowers are ideal for tractors with less power. All EF mowers are fitted with a "Y" blade that can be converted to a 0.40 kg hammer.

Specifications:

- Dimensions: 1450x687x722 mm.
- Cutting width: 135 mm.
< strong> - Weight 169 kg.
- Capacity: 4000-1100 m2 / h.
- Required PTO speed: 540 rpm
- Required tractor power : 20-35 KM.
- Maximum permissible speed: 10 km / h.

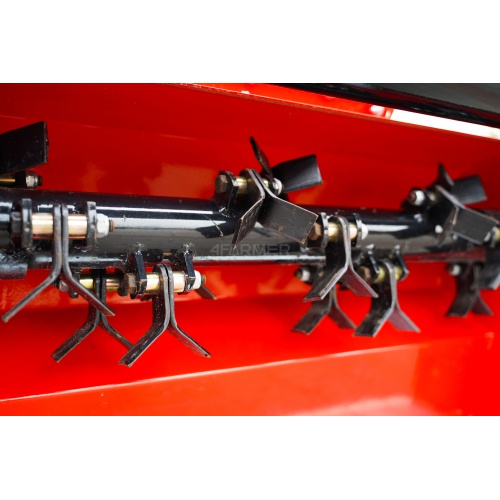

- Number of Y knives: 46 pcs (23 sets).

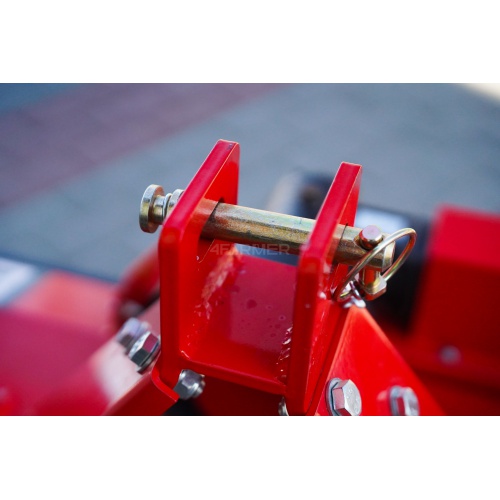

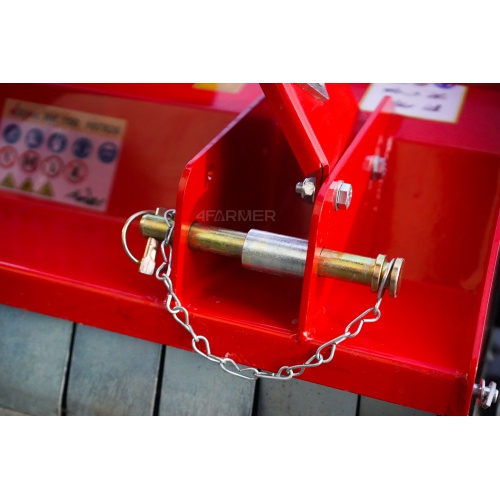

- Hitch: 3 point CAT I.
- Number of V-belts: 2 pcs.
