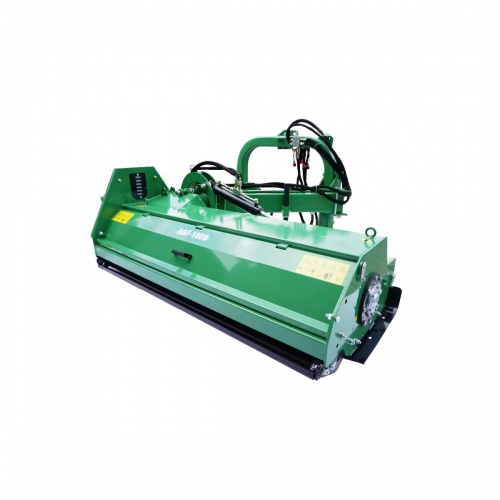

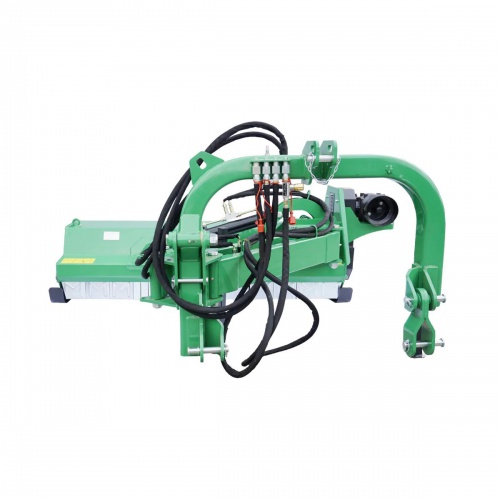

Flail Mower with an outreach arm AGF 220 with valves

Flail Mower with an outreach arm AGF 220 with valves

Due to its massive design and the heaviest flails, the AGF model flail-type mower is very well suited for professional municipal work. Hydraulically adjustable pull-out and tilting of the working module is perfect for mowing roadsides, ditches and slopes.

Applications:

• Mowing of all kinds of barrens
• Mowing of roadsides
• Mowing of green areas in cities
• Maintenance of pastures, meadows and recreational scrubland areas
• Mowing of green areas in parks
• As a cleaning machine for horticulture and fruit farming

Advantages:

• It can be used in urban areas without any problems because the number of thrown stones and their momentum is very limited
• There is no need to collect mulched grass during lawn maintenance if this is repeated quite often
• It can also work well in neglected areas where more stones, branches and other obstacles occur
• The cut green material quickly turns into humus, and the old grass does not grow back so quickly
• It has double protection against damage to the transmission: the flails bounce off a stable obstacle; the belts on the pulleys slip off if the resistance is too high
• The gearbox is equipped with a unidirectional clutch
• Simple design ensures reliability and low repair costs

Technical data:

• Working width – 220 cm
• Overall width – 248 cm
• Mass – 710 kg
• Minimum tractor power – 80 hp
• Max. output – 2,2 ha/h
• Max. speed – 10 km/h
• reach of the arm - 280 cm (from the center of the tractor)
• Number of V-belts – 5 pcs
• Attached to the three-point hitch on the tractor (Category 2)
• Driven by the PTO shaft mounted on the tractor, 540 rpm
• Equipped with intersecting axis gear and clutch
• Cutting elements: 20 flail of 1200 g each per Ø 16 screw
• Adjustable mowing height
• The mower is equipped with 2 valves: one to protect against uncontrolled falling of the machine and the other to tilt the machine whenever an obstacle is encountered
• The mower has both sidewise shifting and tilting at an angle, and therefore it can also be used for mowing ditches (up to 60 degrees downwards), slopes and preliminary hedge cutting (up to 90 degrees upwards)
• The tractor must be equipped with a 2-section hydraulic system connection

In addition, you can be certain that our company:

• Provides a one-year guarantee
• Offers servicing and spare parts
