Out of stock
Others in the offer of this manufacturer >
Condition
NEW
Production
OEM
Parts
WOM
Total length (mm)
900
Diameter (mm)
45 x 4.0 : 51.6 x 3.0
Recommended tractor power (HP)
to 60
Universal joint
30.2 x 80
Go to full specification >

Do you have any questions?

Out of stock

PTO shaft with breakaway wedge 045B - 90 cm / up to 60 HP

045B-LF-90
  • bezpieczeństwo
  • bezpieczeństwo
zł545.00
Tax included (VAT 23%)
Dodaj do koszyka

PTO shaft with breakaway wedge 045B - 90 cm / up to 60 HP

What is a PTO and how does the PTO work?

The power transmission shaft is the shaft that transmits the drive. Rotary movement from the tractor to the connected machine and is designed to work at an angle to the tractor. The power transmission shaft consists of 2 crosses, 2 pairs of forks and a telescopic triangular tube. PTO shaft is the common name for three types of shaft:

  • tractor power take-off shaft (PTO),
  • power transmission shaft, e.g. tubular or telescopic,
  • power input shaft in the machine (WPM).

How to choose the right PTO shaft?

The cross-shaped articulated and telescopic shaft comes in several types and is divided according to the length and the value of the transferred torque. The minimum torque value is a parameter that is the main parameter that we must follow when choosing a shaft. The nominal Nm value is the torque transmission value which decreases as the shaft extends beyond the value specified by the manufacturer. The next step when purchasing a roller is to choose the appropriate length. To select the appropriate shaft, measure the distance from the tractor's PTO shaft to the machine's PTO shaft and then measure the PTO shaft from the center to the center of the joints.

PTO shafts - type 045B-LF - tubular, 90 cm long (measured from end to end when folded).

TYPE 045B-LF - Power transmitted up to 60 HP, Torque up to 524 Nm

Technical data:

  • Standard multi-wedge, 6/6 - 1 3/8.
  • Triangular pipe profile (45x4.0; 51.6x3.0).
  • Cross joints (30.2x80) with grease nipples.
  • Plastic cover.

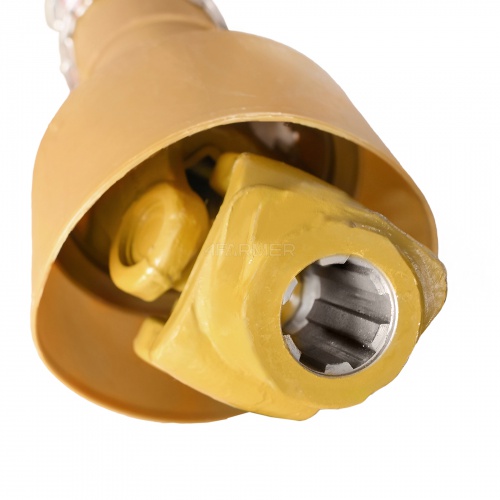

*The illustrative photos show a 70 cm model.

Traktor.com.pl is the largest importer of Japanese mini tractors in Eastern Poland.

Specification

Condition
NEW
Production
OEM
Parts
WOM
Total length (mm)
900
Diameter (mm)
45 x 4.0 : 51.6 x 3.0
Recommended tractor power (HP)
to 60
Universal joint
30.2 x 80
Torque (Nm / rpm)
to 524
Type
Tubular
Pipe profile
Triangular

4FARMER offers equipment that is characterized by exceptional durability. Created for a demanding recipient. They are characterized by a solid construction, high-quality materials used for production, versatility and ease of use.

4FARMER offers a wide range of maintenance mowers and flail mowers.

Advantages of the 4FARMER brand:

  • High-quality products: Products are carefully crafted from high-quality materials for long-term durability and reliability.
  • Availability: The 4FARMER brand is available in a stationary store and online, which makes the products easily available to customers throughout the country and abroad.
  • Professionalism and commitment: 4FARMER is a company employing highly qualified specialists who provide professional advice and technical support. The 4FARMER team is committed to the success of its customers and always strives to provide them with the best solutions.
  • Available price: Despite the high quality of products, the 4FARMER brand offers competitive prices. This makes their products available to a wide range of customers.
  • Positive customer opinions: The 4FARMER brand enjoys positive opinions of customers who appreciate the high quality, effectiveness and reliability of their products. This proves the reputation of the brand and the trust it enjoys among farmers.
  • Continuous development: 4FARMER constantly strives to develop and improve its products. They listen to customer feedback and respond to changing market needs by creating new products and introducing innovations that help farmers achieve even better results in crops and breeding.
